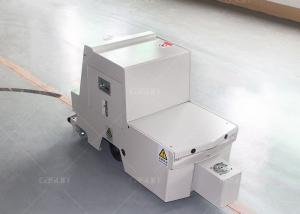

Towing Type AGV Autonomous Guided Vehicle Flexible Walking For Home Appliance Industry

Name: Towing Type AGV Autonomous Guided Vehicle Flexible Walking For Home Appliance Industry
Brand: CASUN
Price: 1 USD

Wholesale Towing Type AGV Autonomous Guided Vehicle Flexible Walking For Home Appliance Industry from china suppliers

Brand Name : CASUN

Model Number : QY1080V2

Place of Origin : China, Shenzhen

MOQ : 1 unit

Price : USD

Supply Ability : 200 units / month

Delivery Time : 35 days

Packaging Details : Wooden case

Product name : Single Way Tugger Type AGV

Model : QY1080V2

Dimensions : L1080*W420*H625(mm)

Load capacity : 500Kg/1000kg

Travel speed : 0-45m/min(Or customizing))

Ramp : ≤2°

Minimum turning radius : min 500mm

Guidance : Magnetic guidance

Travel Direction : Forward, backward, left/right turning & U turn

Guiding accuracy : ±10mm

Stopping accurac : ±10mm

Driving mode : Differential Drive

Workable : 24 hours by optimizing automatic charging

Type : Tugger type

Charging method : Manual charging / automatic charging

Battery : Lead acid battery / lithium battery

Life time : ≥10 years

Alarm : Sound and visual

Contact Now

Tow Type Automated Guided Vehicle Magnetic Drive Sensor Single Way Unmanned Intelligent for Home Appliance Industry

1. Product Description:

Single Way Tugger Type AGV has towing capacity of 1000kg. AGV draws the trolley to another designated point through the guidance of magnetic stripe and reading the landmark’s instruction, then AGV drop-off the trolley automatically. It can draw a couple of trolley at a time and have the function of multi-site stopping.

2. Application:

AGV project has implemented in AUX ( home appliance company )

Towing Type AGV Autonomous Guided Vehicle Flexible Walking For Home Appliance Industry

3. Specifications:

Product name	Tow Type Automated Guided Vehicle Magnetic Drive Sensor Single Way Unmanned Intelligent for Home Appliance Industry
Model	QY1080V2
Dimensions	L1080W420H625(mm)
Load capacity	500Kg/1000kg
Minimum turning radius	min 500mm
Guidance	Magnetic guidance
Travel Direction	Forward, backward, left/right turning & U turn
Travel speed	0-45m/min(Or customizing))
Guiding accuracy	±10mm
Stopping accurac	±10mm
Communication available	RF / Wifi
Driving mode	Differential driving
Power	DC24V
Workable	24 hours by optimizing automatic charging
Ramp	≤2°
Type	Tugger type
Charging method	Manual charging / automatic charging
Battery	Lead acid battery / lithium battery
Life time	≥10 years
Alarm	Sound and visual
Safety features	Front obstacle sensor+mechanical bumper sensor
Safety induction range	Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm

4. Advantages:

Towing payload up to 2T
Connect the rack and transport
Drop off the rack automatically.

Towing Type AGV Autonomous Guided Vehicle Flexible Walking For Home Appliance Industry
